Altered maturation and activation state of circulating monocytes is associated with their enhanced recruitment in pulmonary arterial hypertension

Respiratory Research volume 26, Article number: 148 (2025) Cite this article

Abstract

Background

It is well-established that patients with pulmonary arterial hypertension (PAH) exhibit increased recruitment of circulating monocytes to their pulmonary arteries. However, it remains unclear whether these monocytes have intrinsic abnormalities that contribute to their recruitment and to PAH pathogenesis. This study aimed to characterize the gene expression profiles of circulating classical, intermediate, and non-classical monocytes and assess their maturation trajectory in patients with idiopathic (I) PAH compared to control subjects. Additionally, it sought to explore the relationship between the observed IPAH abnormalities and deficiencies in bone morphogenetic receptor 2 (BMPR2), the most frequently mutated gene in PAH, and to assess adhesion and transendothelial migration, key processes in monocyte infiltration of pulmonary arteries.

Methods

Differentially expressed genes and maturation trajectories of circulating monocytes from patients with IPAH vs. control subjects were compared using single cell RNA sequencing (scRNAseq), followed by FACS analysis. Observations from IPAH and control cells were related to reduced BMPR2 using a THP1 monocyte cell line with BMPR2 reduced by siRNA as well as induced pluripotent stem cell (iPSC) derived monocytes (iMono) from hereditary (H) PAH patients with a BMPR2 mutation and monocytes from mice with Bmpr2 deleted (MON-Bmpr2−/−).

Results

Classical IPAH monocytes have decreased CD14 mRNA leading to a deviation in their maturation trajectory and early terminal fate, which is not rescued by cytokine treatment. Monocytes that evade early cell death show elevated STAT1, PPDPF and HLA-B, and an interferon (IFN) signature indicative of an altered activation state. A strong link between decreased BMPR2 and CD14 was observed in THP1 cells and in HPAH iMono with a BMPR2 mutation associated with STAT1 and IFN related genes, and in monocytes from MON-Bmpr2−/− mice. Increased adhesion to iPSC-derived endothelial cells (iECs) in HPAH-BMPR2 mutant iMono was associated with elevated ICAM1 expression. Enhanced transendothelial migration of these cells was associated with the reduction in endothelial VE-cadherin (CDH5).

Conclusions

IPAH monocytes exhibit an altered activation state associated with reduced BMPR2 and CD14, along with elevated STAT1-IFN expression. These changes are linked to intrinsic functional abnormalities that contribute to the monocytes’ increased propensity to invade the pulmonary circulation.

Background

Pulmonary arterial hypertension (PAH) is characterized by a progressive increase in the mean pulmonary arterial pressure leading to right-sided heart failure as distal pulmonary arteries become occluded due to vascular dysfunction and chronic inflammation [1, 2]. Vascular dysfunction can result from reduced expression of bone morphogenetic protein receptor type 2 (BMPR2). While BMPR2 mutations are observed in hereditary PAH (HPAH) patients, reduced BMPR2 function is also evident in idiopathic (I) PAH without a mutation, and in PAH resulting from a number of primary medical conditions [3]. In pulmonary arterial endothelial cells (PAEC), reduced BMPR2 can lead to increased recruitment of inflammatory cells particularly myeloid cells [4], but the contribution of reduced BMPR2 to the intrinsic dysfunction of these cells has not been extensively investigated. Recent studies from our group using multiplex ion-based imaging revealed more severe myeloid cell inflammation in the lesions of patients with a BMPR2 or SMAD9 mutation [5].

The role of macrophages in the pathogenesis of PAH has been investigated in both clinical and experimental settings [1, 6]. Macrophages accumulate in the perivascular space where they drive chronic inflammation that contributes to obliteration of distal pulmonary arteries by inducing endothelial cell dysfunction as well as fibroblast and smooth muscle cell proliferation [1, 7,8,9]. PAH-associated macrophages exhibit a pro-inflammatory and anti-phagocytic phenotype, secreting cytokines and chemokines that shape the local tissue microenvironment. Importantly, experimental pulmonary hypertension (PH) can be prevented or reversed by depleting macrophages or the factors they release [4, 6].

Far fewer studies have examined monocytes in PAH. However, in two animal models of PH, vascular remodeling was attenuated by blocking recruitment of circulating monocytes from the bone marrow [6, 9, 10]. It is therefore becoming evident that the pathological role of macrophages in PAH results from recruitment and differentiation of circulating monocytes, rather than resident macrophages [9, 11]. Investigating the intrinsic properties of circulating monocytes is therefore important in understanding their role and that of their derivatives in PAH pathogenesis [12].

Classical monocytes (CD14+/CD16−) are recruited from the bone marrow to the systemic circulation, where they normally differentiate into intermediate (CD14+/CD16+) monocytes, which subsequently mature into non-classical (CD14−/CD16+) monocytes. Monocytes that fail to complete this differentiation process undergo apoptosis [13]. Normal CD14+ monocytes can differentiate into pro-inflammatory macrophages, while CD16 + monocytes typically give rise to anti-inflammatory macrophages [12, 14, 15]. Additionally, monocytes can also differentiate into monocyte derived dendritic cells that we have related to proliferating SMC [5].

In this study, we used single cell RNA sequencing (scRNAseq) to analyze the transcriptome of circulating monocytes from patients with IPAH compared to healthy controls. Trajectory analysis revealed two distinct transcriptomic profiles in IPAH monocytes. One population follows the typical phenotypic pathway from classical, to intermediate into non-classical while maintaining increased signal transducer and activator of transcription 1 (STAT1) gene expression. The second population, which fails to mature beyond the classical phenotype, exhibits low expression of CD14, and proto-oncogenes FOS and JUNB. Further investigation of this second classical monocyte population revealed a propensity towards cell death consistent with reduced CD14 expression, and impaired response to activating stimuli.

We identified a link between reduced CD14 and decreased BMPR2 levels in human monocytes, with a corresponding a decrease in the paralogue Ly6c in murine monocytes lacking Bmpr2. In response to hypoxia, Bmpr2-deficient murine monocytes appear responsible for the increase in perivascular macrophages, consistent with enhanced monocyte recruitment and differentiation within the lung tissue. Human induced pluripotent stem cells (iPSC) harboring a BMPR2 mutation, differentiated into monocytes (iMono) showed increased adhesion and transendothelial migration, independent of the mutation status of iEC. These findings highlight the potential of emerging therapies aimed at correcting abnormalities in both circulating monocytes and the vasculature.

Methods

PAH patient and control samples

All human samples used were coded and all patients and controls signed an informed consent under protocols approved by the Institutional Review Board on Human Subjects in Medical Research at Stanford University. We included PAH patients diagnosed with idiopathic PAH (IPAH) between the ages of 23 and 80 and healthy controls between the ages of 27 and 60. Whole blood from PAH patients was obtained from the Stanford Pulmonary Arterial Hypertension biobank (Stanford IRB #14083), and blood from healthy volunteers was obtained from the Stanford Biobank under the University sponsored precision health initiative (Stanford IRB #40869). Some experiments were conducted using de-identified blood from healthy individuals, obtained from the Stanford Blood Center (listed in Table E2 in the Online Data Supplement). iPSC used in the iMono and iEC experiments were derived by the Stanford CVI Biobank from de-identified skin fibroblasts provided by Dr. Eric Austin from Vanderbilt University, and by the PHBI Network investigators at Baylor College of Medicine, Vanderbilt University, and Allegheny hospital (Pittsburgh, PA). Control fibroblasts were donated and hereditary (H) PAH patient fibroblasts with a BMPR2 mutation were collected with informed consent under an IRB approved at the procuring center. Patient’s characteristics, demographics, and hemodynamics and a list of the medications for each patient are shown in Table E1 in the Online Data Supplement. In Table E2 Stanford biobank control samples used for the scRNAseq had echocardiographic studies performed to exclude cardiovascular disease.

Cell isolation and culture

Primary monocytes

PBMC were isolated by Ficoll-Paque (Histopaque™, Sigma Aldrich, St Louis, MO, Cat# 10771) from 15 mL of whole blood. Enriched monocytes were isolated from peripheral blood mononuclear cells (PBMC) via two methods: Magnetic bead isolation and FACS sorting.

THP1 cells

THP1 cells were obtained through ATCC (Cat#: TIB-202) and cultured according to ATCC standard protocol (ATCC website, protocol TIB-202 Product Sheet) in RPMI 1640 basal medium (Gibco, Cat#: 11875093) with 10% FBS, Penicillin-Streptomycin (10U/mL) (Gibco, Cat#: 15070063) and 2- mercaptoethanol (0.05mM) (Sigma, Cat#: M6250).

HEK293T cells

HEK293T cells were cultured in DMEM supplemented with 10% FBS and 1% penicillin-streptomycin.

PBMC FACS sorting and analysis

PBMC were resuspended in RPMI-1640 (Gibco, Dublin, Ireland) with 25mM HEPES, 2mM L-glutamine, and 100 I.U/mL penicillin and streptomycin (Gibco, ) and centrifuged at 400 g for 10 min. The pellet was resuspended in cold stain buffer (PBS (Invitrogen, Cat#: 10010023), 2 mM EDTA (EMD Millipore, Cat#: 15575020) and 5% BSA (Sigma, Cat#: A3059) and washed twice at 300 g at 4ºC. Cells were resuspended in cold stain buffer at 2 × 107 cells/mL and aliquoted to the desired number of staining tubes. All cells were blocked with non-specific Fc-mediated (human IgG) interaction at 2.5 µg per 106 cells for 10 min. Conjugated antibodies FITC-conjugated CD14 Cat#: 347493), PE-conjugated CD16 (Cat#: 347617), APC-conjugated CD19 (Cat#: 555415) (BD Biosciences, San Jose, California, USA), APC-conjugated CD56 (Cat#: 318310), APC-conjugated CD3 (Cat#: 300312), and Alexa-Flour 647-conjugated CD11c (Cat#: 301620) (BioLegend, San Diego, CA, USA), and ZombieNIR™ (BioLegend, Cat#: 423105) as a live/dead stain were added to appropriate tubes at manufacturers specified concentrations for 20 min at 4ºC, away from light. Monoclonal antibodies for surface antigen staining are listed in Table E3 in the Online Data Supplement. Following antibody incubation, cells were washed twice in cold stain buffer at 300 g for 2 min at 4ºC. Pellets were resuspended in a stain buffer, placed on ice, and immediately sorted on either FACS Aria Fusion, FACS Aria II or Influx (Beckman Coulter, Brea, CA, USA). Classical monocytes were sorted based on positive CD14 only; intermediate monocytes on CD14 and CD16 double positive; and non-classical monocytes on positive CD16. APC conjugated antibodies were used as a dump channel to eliminate other immune cells. For gating strategies, see Fig. E1 in the Online Data Supplement. FACS data were analyzed with FlowJo X 10.0.7r2 software (Tristar). Compensation was calculated using single-stained antibody-capture beads (CompBeads, BD Biosciences, Cat#: 552844). Fluorescence Minus One (FMO) control for each of these molecules were performed.

Single cell RNA sequencing (scRNAseq)

PBMC were isolated as outlined above. Cells were diluted to 107 cells/mL for optimal viability and taken to the Stanford Genomic Core for scRNAseq processing as per the 10X Genomics specified protocol, briefly outlined below.

Cell counting, GEM generation and barcoding

An aliquot of each cell suspension was stained with trypan blue. Concentration and viability were determined using the BioRad TC20 automated cell counter. Cells were counted for correct suspension volume for 5,000 cells total. Following addition of the 10X Master Mix™ (real time reagent mix, real time primer, Additive A, and real time enzyme mix) to the Single Cell A Chip, cells were loaded into the same well. Single Cell Gel Bead suspension was added in a separate well on the chip, as well as the partitioning oil in a third separate well. The chip is covered with a gasket and loaded into the 10X Genomics Chromium™ Controller. Following the completion of the run, the gel beads in emulsion (GEMs) are transferred into a PCR tube for amplification.

Library preparation, and sequencing

Single-cell libraries were prepared using the 10X Genomics Chromium 3’ Gene Expression Solution. The average fragment size of each completed library was determined using the Fragment Analyzer (Agilent). Final library concentration was determined using the Qubit High Sensitivity double stranded (ds)DNA Assay (ThermoFisher, Cat# Q32850). Libraries were normalized to a common concentration prior to being pooled and sequenced on the Illumina HiSeq-4000.

Single cell transcriptome sequence pre-processing

Sequencing reads were demultiplexed and mapped to the Homo sapiens genome assembly GRCh38 using software Cell Ranger V3.0 (10X Genomics). Mapped reads were aggregated into an expression matrix by Cell Ranger V3.0 (10X Genomics). This matrix was loaded to R and a Seurat object was created using package “Seurat” V4.0.0. 40,029 cells were obtained for quality control. Doublets were removed by removing cells whose nFeature < 0.22*nCount– 170. For samples using chemistry V2, cells with less than 13% mitochondrial genes and 2,100 unique genes with more than 1,100 reads were kept for downstream analysis. For samples using chemistry V3, cells with less than 20% of mitochondrial genes and 3,500 unique genes, with more than 2,100 reads were kept for downstream analysis. Cells expressing less than 50 housekeeping genes according to a relevant search [16] were removed. 35,557 samples carrying 20,746 unique features were preserved for downstream analysis.

ScRNAseq statistical analysis

Clean data were transformed and aggregated using sct transform following standard protocol [17]. Briefly, the two batches (V2 chemistry and V3 chemistry) were integrated based on 3,000 selected features across all samples. Principal Components Analysis (PCA) was performed based on 2,000 most variable genes within the integrated dataset. Following examination of variability within the dataset, uniform manifold approximation and projection (UMAP) based on 30 principal components was applied for visualizing cells in two dimensions. We implemented the Seurat package to identify raw cell clusters, calling 28 clusters at a resolution of 1.3 through the shared nearest neighbor (SNN) modularity optimization-based clustering algorithm. Representative gene markers of each cluster were calculated by building a logistic regression model for each unique gene in one cluster and then comparing this with the null model with a likelihood ratio test. For downstream analyses, two clusters were excluded as they did not represent peripheral blood mononuclear cells (PBMC). Additionally, four clusters were specifically omitted from Figures E1B-C in the Online Data Supplement, as they lacked distinct gene markers discernible at the chosen resolution after marker calculation.

Monocytes/Conventional Dendritic Cell clusters were identified as described in Results section. Cluster specific differential abundant genes between controls and PAH patients was performed based on modeling each gene by negative binomial distribution and comparing the distribution between cohorts using DESeq2 [18]. Gene Ontology analysis was performed using R package “clusterProfiler” [19]. Briefly, genes from DEG analysis are selected at absolute log2 fold change > 0.3 and adjusted P value < 0.05. This list of genes was mapped with gene sets from R package “org.Hs.eg.db.” Single cell trajectories were calculated by R package “Monocle 3” [20]. Briefly, samples from control and PAH patients are normalized to 2,104 cells. Projections of cell trajectories was performed on the UMAP result. The start point of the trajectory was set on the area of CD14 farthest to the CD16 positive monocytes cluster based on its previously reported natural development progress [21]. If not specifically mentioned, the Figure was then produced by R package ggplot2. Detailed package version and R environment information can be found at https://github.com/xzhou7/scRNA_PBMC/blob/main/R.Session.Info.

Primary monocyte culture for cell death assay

Following isolation by FACS sorting, classical monocytes were cultured overnight in RPM1-1640 with 10% fetal bovine serum (FBS) (Gibco) in 24-well plates (Corning, Corning, NY, USA) at 1 × 105 cells/well. These classical monocytes were stimulated with GM-CSF (10ng/mL; Prepotech, Rocky Hill, NJ, USA, Cat#300-03), m-CSF (10 ng/mL; Prepotech, Cat#300−25) and low-dose Lipopolysaccharides from Escherichia coli O111:B4 (LPS) (5 pg/mL; Company, Cat#L4391) for 24 h. All cells were collected and centrifuged at 400 x g and processed for FACS analysis as outlined in the “PBMC FACS Sorting and Analysis” methods section, including a live/dead stain using ZombieNIR™ (Biolegend).

Real time PCR (RT qPCR) of primary monocytes and THP1 cells

Total RNA was isolated using Trizol TRI-Reagent (Sigma, Cat# T9424). The quantity and quality of RNA was determined by using a spectrophotometer. RNA was reverse transcribed using the High-Capacity RNA to cDNA Kit (Applied Biosystems, Foster City, CA, Cat# 4387406). Total RNA (2 µg) from each sample was assayed in triplicate for each reverse transcription (20 µL volume). RT-qPCR was performed using 2µL cDNA per sample, 1 µL mixed primers (5 µM), 5 µL Power SYBR green PCR Master Mix (Applied Biosystems, Cat# 4368577), 2 µL ddH2O. Each measurement was conducted in triplicate using a CFX384 Real Time System (BioRad) in a 10 µL reaction. The PCR conditions were pre-denaturation at 95℃ for 3 min, followed by 40 cycles of 95℃ for 15 s, annealing and extension at 56℃ for 60 s, or depending on the primers to adjust annealing temperature. The mRNA relative transcriptional level was calculated by the relative quantitative method 2 − ΔΔCt with the formula: ΔΔCt = ΔCt (experimental group) −ΔCt (normal group), ΔCt = Ct (target gene) − Ct (internal reference), and 2 − ΔΔCt represented the mRNA relative transcriptional level. Expression levels of selected genes were normalized to beta 2 microglobulin (B2M) mRNA. Primers sequences were designed using PrimerBank (http://pga.mgh.harvard.edu) and are listed in Table E5 in the Online Data Supplement.

SiRNA BMPR2 knockdown in THP1 cell line

THP1 cells at a density of 5 × 105 cells/mL were cultured overnight in a 6-well plate, followed by siRNA transfection with siRNA BMPR2 (SMARTpool ON-TARGETplus, Origene, Rockville, MD, Cat#: L-001230-00-005) or siRNA Control (ON-TARGETplus non-targeting Control siRNA, Origene, Cat#: D-001230-01) using the TransIT-TKO reagent (Mirus, Madison, WI Cat# MIR2150) according to the manufacturer’s recommendations. BMPR2 protein reduction was confirmed in membrane fractions as part of a separate study [data not shown].”

Lentiviral transfection of THP-1 cell line

HEK293T cells were sourced from ATCC (Cat#: CRL-3216) and maintained in Dulbecco Modified Eagle Medium (DMEM) High Glucose (Gibco, Cat#: 11965092) supplemented with 10% FBS and 1% penicillin-streptomycin, following ATCC standard protocol. The cells were seeded at a density of 5 × 105 cells/mL in a T75 flask and incubated overnight. The next day, the old media was removed and replaced with 8 mL of fresh medium. This was subsequently treated with 2 mL of reduced serum medium (Opti-MEM, Gibco, Cat#: 31985070) pre-incubated for 15 min with 7 µg of either scramble shRNA (Cat#: VB010000-0009mxc) or BMPR2 shRNA plasmids (Cat#: VB900034-4780ezd) (Vector Builder Chicago, IL), 7 µg of lentiviral packaging plasmid mix (Celecta, Mountain View, CA, Cat#: CPCP-K2A), 30 µL Lipofectamine 3000, and 14 µL P3000 reagent (Invitrogen, Cat# L3000001). After a 24-hour incubation, green fluorescence was observed, and the media were collected. The collected media were then filtered through a 0.45 μm filter to remove cellular debris.

THP1 cells (Cat#: TIB-202) were cultured according to ATCC standard protocol in RPMI 1640 basal medium (Gibco, Grand Island, NY, Cat#: 11875093) with 10% FBS, Penicillin-Streptomycin (10 U/mL) and 2-mercaptoethanol (0.05 mM) (Sigma, Cat#: M6250). Before transduction, THP-1 cells were plated in 6-well plates and treated with monocyte attachment medium (PromoCell, Heidelberg, Germany, Cat#: C28051) for one hour to enhance attachment and transfection efficiency. The filtered lentiviral media from HEK293T cells was added to the THP-1 cells, and polybrene (Santa Cruz Biotechnology, Cat# CAS 28728-55-4) at a concentration of 10 µg/mL was included to improve transduction efficiency. The cells were incubated with the viral media for 72 h, followed by puromycin selection at 1 µg/mL in fresh media for 5–7 days until non-transduced cells were eliminated. Transduction efficiency was initially assessed by observing GFP expression under a fluorescence microscope. To confirm BMPR2 knockdown, RNA was extracted, and qRT-PCR was performed to measure BMPR2 mRNA levels, normalized to B2M.

Generation of iMonocytes

iMono differentiation studies

The subject-specific induced pluripotent stem cells (iPSC) were generated from peripheral blood cells of patients and from healthy volunteers (control) who did not have the BMPR2 mutation as previously described [22]. All iPSC lines assessed had the potential of unlimited self-renewal and the ability of three germ layers differentiation. This was tested by performing a monolayer differentiation assay which spontaneously drives the cells towards the three germ layers in vitro. We determined the marker gene expression for the mesoderm (HAND1), endoderm (SOX17), and ectoderm (PAX6) by RT-qPCR as per our previous publications [23]. A stepwise protocol was developed to drive iPSC differentiation into mesoderm precursors under feeder-free and chemical defined conditions, followed by their specific lineage commitment and maturation [24]. Briefly, iPSCs were seeded onto Matrigel-coated plates at ~ 8 mg/mL (BD Biosciences, Cat# 354230) at approximately 10 ~ 30 cells per colony, with Rock inhibitor Y-27,623 (10 nM, Tocris Bioscience, Bristol, UK, Cat# 1254). Step 1: After 24 h of recovery in Essential 8™ Medium (Gibco, Cat# A1517001), cells were differentiated into mesoderm progenitors in differentiation medium STEMdiff™ Apel™2 media (Stemcell Technologies, Vancouver, BC, Canada, Cat# 05275) with Penicillin/streptomycin (50 U Penicillin G/ 50 mg streptomycin sulfate; Invitrogen). During the first two days of culture, Apel™2 was supplemented with recombinant human (rh) vascular endothelial growth factor (rhVEGF, 10 ng/mL; Gibco, Cat# PHC9394), rh Bone morphogenetic protein 4 (rhBMP4, 10 ng/mL; R&D systems, Cat# 314-BP-050), and rh Basic fibroblast growth factor (rhbFGF, 10 ng/mL; PeproTech, Cranbury, UK, Cat# 100-18B). From day 3 to day 7 (Step 2), additional supplement of hematopoietic stem/progenitor cells (HSPC) growth factors and cytokines: rh stem cell factor (rhSCF, 50 ng/ml; PeproTech, Cat# 2830), rh Flt-3 Ligand (rhFlt-3 L, 50 ng/mL; PeproTech, Cat# 2941), and rh Thrombopoietin (rhTPO, 50ng/mL; PeproTech, Cat# 02720). Step 3 (day 7–10), rh Granulocyte-Macrophage Colony-Stimulating Factor (rhGM-CSF, 100 ng/mL; PeproTech, Cat# 300-03) was added to the culture medium. During step 4 (from day 10–14), the culture medium was changed to RPMI 1640 with 10% of FBS (R&D Systems, Cat# S11150H) plus rhFlt-3 ligand, rhTPO, rhSCF, and rhGM-CSF to further promote differentiation into myeloid lineage cells. After 14 days of induction (Step 5), in order to enrich monocyte generation from myeloid lineage cells, the cells in suspension were collected, seeded into regular cell culture dishes and cultured for an 5 additional days in RPMI with 10% of FBS, supplemented with rhGM-CSF and rh Macrophage Colony-Stimulating Factor (rhM-CSF, 100 ng/mL; PeproTech, Cat# 300 − 25), the key regulators of monocyte proliferation and differentiation [25].

iMono validation

For the flow cytometric immunophenotyping of iPSCs and monocytes, the suspension cells were harvested at designed time points. Following washing with PBS, cells were stained for 30 min in the dark at 4 °C with the following anti-human monoclonal antibodies: PE-conjugated CD34 (BioLegend, Cat#: 343606), APC-conjugated CD45 (BioLegend, Cat#: 304012), FITC-conjugated CD14 (BioLegend, Cat#: 325604), APC-conjugated CD16 (BioLegend, Cat#: 302012), and PE/Cy5-conjugated CD11b (BioLegend, Cat#: 301308). After washing with PBS, stained cells were resuspended and analyzed by fluorescence-activated cell sorting (FACS) (MACS Quant, Miltenyi Biotec). (Gating strategy is shown in Online Data Supplement Figure E2B). Monoclonal antibodies for surface antigen staining are listed in Table E4 in the Online Data Supplement. This protocol yields surface expression similar to plasma monocytes [23].

Generation of iEC for iMono functional studies

Induced endothelial cell (iEC) differentiation studies

The iPSC lines used for iMono differentiation were also differentiated into endothelial cells (iEC) following our previously published protocol [22]. iPSCs were seeded onto Matrigel-coated plates at ~ 8 mg/mL (BD Biosciences) at approximately 10 ~ 30 cells per colony, with Rock inhibitor Y-27,623 (10 nM, Tocris Bioscience, Cat# 1254). After 24 h of recovery in Essential 8™ Medium (Gibco, Cat# A1517001), cells were differentiated into mesoderm progenitors in differentiation medium STEMdiff™ Apel™2 media (Stemcell Technologies, Vancouver, BC, Canada, Cat# 05275) with Penicillin/streptomycin (50U Penicillin G / 50 mg streptomycin sulfate; Invitrogen, Cat# 15140122) and supplemented with rhVEGF, (10 ng/mL; Gibco, Cat#: PHC9394), rhBMP4 (10 ng/mL; R&D systems, Cat#: 314-BP-050) and rhbFGF (10 ng/mL; PeproTech, Cat#: 100-18B) for 7 days. Cells were lifted using TrypLE TM Express Enzyme (Invitrogen, Cat# 12563), and assessed for CD31 and CD34 surface antigen expression via FACS. Subsequently, CD31 positive cells from the induction culture were enriched using CD31 human Magnetic MircoBead Kit (Miltenyi, Cat# 130-091-935), and to promote further expansion [26], iECs were further cultured on Collagen I coated plates (Corning BioCoat, Cat# 354450) with endothelial culture medium, 1:1 EGM™2 supplemented with 5% FBS, hydrocortisone, hFGF-B, VEGF, R3-IGF-1, Ascorbic Acid, hEGF, GA-1000, Heparin- as per manufacturer’s instructions (Lonza, Basel, Switzerland, Cat# CC-3162) and StemPro™-34 SFM (Gibco, Cat# 10639011).

Acetylated low density lipoprotein (LDL) uptake iEC validation assay was performed by incubating the iEC with 10µg/mL acetylated LDL (Ac-LDL) labeled with 1,1’-dioctadecyl-3,3,3’,3’-tetramethylindo-carbocyanine perchlorate (DiI-Ac-LDL) (Invitrogen, Cat# L3484) for 4 h at 37 °C. The DiI-Ac-LDL uptake was assessed and quantified by fluorescent microscopy. Subsequently, cells were dissociated into single cells with TrypLE and quantified via FACS. Data acquisition was performed on a MACSQuant Flow Cytometer (Miltenyi Biotec, Bergisch Gladbach, Germany) and the results were analyzed with FlowJo software (FlowJo, LLC). iEC in passage 3 were used for all subsequent experiments.

In vitro co-culture

Experiments were performed following our previously published protocols [27].

Transmigration assay

Transwell inserts with transparent polyester (PET) membrane (3.0 μm pore size) (Corning, Cat# 353096) of a 24-well plate were coated with human fibronectin (31.25 µg/mL) (Corning, #54008), to minimize cytokine production and ensure greater adherence, for 30 min. iEC were then seeded at a density of 60,000 cells/well in the upper insert. After iEC formed a confluent monolayer (24 h), control or HPAH iMono at a 10:1 iMono/iEC ratio were added to the top insert with 1:1 ratio mixed medium (iEC media/RPMI with 10% FBS). The same medium was only added to the bottom chamber. The iMono that transmigrated to the bottom chamber were collected after 24 h co-culture. Cells were counted with BioRad TC20 automated cell counter and expressed as cells / mL.

Adhesion assay

iEC were seeded in a 24-well plate coated with fibronectin (31.25 µg/mL) at 1 × 105 cells/well. After iEC formed a confluent monolayer (24 h), control or HPAH iMono were added at a 10:1 iMono/iEC ratio with 1:1 ratio mixed medium (iEC media/RPMI with 10% FBS). Following 24 h in co-culture, cells were washed with PBS and adhered iMono were counted via DAPI staining using their distinct smaller nuclei on the endothelial monolayer. Cells were imaged using a Zeiss inverted fluorescence microscope using Zen 3.3 imaging software (Zeiss, Oberkochen, Baden-Württemberg, Germany). Quantification was conducted on 10 fields of view on 3 technical replicates for 3 biological replicates.

iEC immunofluorescence staining

Cells were co-cultured with control or HPAH iMono at 10:1 iMono/iEC ratio for 24 h then fixed with 4% paraformaldehyde for 10 min at room temperature. The primary antibody mouse anti-VE-cadherin (CDH5) (1:100 Santa Cruz, CA, Cat# sc-9989) and rabbit anti-intercellular adhesion molecule (ICAM1) (1:100, Abcam, Cat# ab109361) were applied overnight at 4oC, followed by secondary antibody goat anti-rabbit-Alexa Flour 594 and donkey anti-mouse-Alexa Flour 488 (1:1000, Invitrogen, Cat# a11012 & a21202 respectively) for one hour at room temperature. DAPI (1:10,000, Thermo, Cat# D1306) was used for cell nuclei detection. Cells were imaged using a Zeiss inverted fluorescence microscope using Zen 3.3 imaging software (Zeiss).

Animal studies

The Animal Care Committee at Stanford University approved all the experimental protocols used in this study in accordance with the guidelines of the American Physiological Society.

Cx3cr1Cre/Td/Bmpr2 −/− Mice

Bmpr2flox/flox mice were generated in our lab and were crossed with Cx3cr1-Cre and Td tomato mice (Stock No: 020940 and 007914, The Jackson Laboratory, Bar Harbor, MA). Further breeding of the offspring generated Cx3cr1Cre/Td/Bmpr2−/− (KO) progeny. The mice were initially of a mixed C57 BL/6J, SV129 and FVB background but were backcrossed for more than six generations onto a C57BL/6J background.

The inducible KO and control mice at age of 6–8 weeks were fed a tamoxifen containing diet (ENVIGO, product code: TD.130859, 400 mg/Kg food) for four weeks to induce deletion of target genes in monocytes before exposure to hypoxia only as described below. The four-week tamoxifen diet was well tolerated with no toxicity. Isolated peripheral blood monocytes and freshly isolated lungs were checked for Td tomato expression with co-expression of LY6C and CD68, respectively. Each experiment included 5 mice per sex per group. The results show 3–5 mice per sex, per group.

Genotyping by polymerase chain reaction (PCR)

We followed the protocol provided by The Jackson Laboratory (https://www.jax.org/Protocol) for detection of transgene, Cx3cr1-Cre (Jax website, stock No. 020940) and Td tomato (Jax website, stock No. 007914). For Bmpr2 transgene expression, tails were collected and processed with Mouse Tail DNA Extraction kit (101 Bio, Mountain View, CA, Cat# T605). Five µL of tissue lysate containing 50–100 ng of genomic DNA were used for each PCR reaction. 1.5-2% agarose gel electrophoresis was performed, and gels were analyzed by Image Lab (BioRad, Hercules, California). PCR Primers used for genotyping are listed in Table E5 in the Online Data Supplement.

Hypoxia exposure

The inducible KO mice after the tamoxifen diet, or Cx3cr1Cre/Td as controls were placed in a hypoxia chamber (BioSpherix, Lacna, NY, Cat#. A-30274-P) and exposed to 10% inspired O2 with access to food and water for three weeks. Mice and O2 status were monitored daily.

Two-dimensional echocardiographic assessments

Prior to the hemodynamic assessment, two dimensional echocardiographic measurements of cardiac function were carried out with the GE Vivid7 and GE Vivid95 ultrasound machines in unventilated mice under isoflurane anesthesia (1.5 − 2.5% in 2 L O2/min). Mice chests were shaven, and echocardiographic images were used to determine the heart rate (HR) and the pulmonary arterial acceleration time (PAAT). Mice were monitored during the echocardiographic assessment.

Hemodynamic assessments

Cardiac catheter measurements of the right ventricular systolic pressure (RVSP) were carried out in unventilated mice under isoflurane anesthesia (1.5 − 2.5% in 2 L O2/min) with closed chests using a 1.4 Fr Millar catheter (Millar Instrument, Houston TX, Model SPR-671), inserted through the jugular vein, and recorded with the PowerLab 7 system (AD Instruments, Model PowerLab 7, Colorado Springs CO) as previously described [28].

Tissue processing

Mice were sacrificed by cervical dislocation under anesthesia, and the heart and lungs were harvested after flushing the pulmonary circulation with cold PBS. The lungs were fixed with 10% v/v neutral buffered formalin (NBF), embedded in paraffin for sectioning, and routine histology and morphometric analyses conducted as previously described [28]. Right ventricular hypertrophy (RVH) was assessed as the dry weight of the right ventricle (RV) relative to the weight of the left ventricle plus septum (LV + S).

Blood collection and monocyte isolation

Mice were humanely sacrificed and immediately opened in the peroneal space to withdraw blood from the superior vena cava. Mouse blood was pooled from 3 mice for subsequent PBMC isolation using Ficoll-Paque as outlined above. Monocytes were isolated using the Monocyte Isolation Kit (BM) for Mice (Miltenyi, Cat#. 130-100-629) and processed for RT-qPCR as outlined above.

Mouse bone marrow isolation and bone marrow derived macrophage (mBMDM) differentiation

Mice were humanely sacrificed by cervical dislocation, and both the tibia and femur of both legs were surgically removed and flushed with Eagle’s Minimum Essential Medium (EMEM, Sigma Aldrich, Cat#: M4655) + 10% FBS with Penicillin-Streptomycin (10 U/mL) (Gibco) medium to collect all bone marrow. This was filtered and strained to achieve a single cell suspension and plated in L929 conditioned media for 2 days. mBMDM culture was washed with PBS on day 2 to eliminate bone marrow debris and dead cells and cultured for a further 5 days in EMEM + 10% FBS with Penicillin-Streptomycin (10 U/mL) (Gibco).

Identification and quantification of Td + Cells

Paraffin-embedded mouse lung tissue sections were deparaffinized and rehydrated following a standard protocol. Sections were permeabilized (0.2% Triton X-100 in 1X TBS) for one hour at room temperature, followed by 3 × 5 min wash in in ddH20 and mounted with ProLong™ Gold Antifade Mountant with DAPI (Invitrogen, Cat#: P36931). Images were acquired using a SPOT imaging system (SPOT IMAGING, Sterling Heights Headquarters, MI) connected to a Leica microscope (JH Technologies, Leica DMLB model, Fremont, CA) with 10X and 20X objectives. Quantification was performed on 5 fields of view (FOV) of the distal pulmonary arteries per mouse/ group, where only perivascular macrophages were counted using Fiji ImageJ2, Version 2.9.0/1.53t.

Statistical analysis

Monocytes/Conventional Dendritic Cell clusters were identified as described in Results section. Individual data points are shown, with bars representing mean ± standard error of the mean (SEM). We were limited by the number of experiments that could be done using freshly isolated monocytes, so in general the n in these studies is lower than in those where we could use frozen PBMC to isolate the monocytes. Data with a sample size n < 8 was analyzed using the Mann-Whitney non-parametric test. Samples with n of 3 are confirmatory of other assays or represent technical replicates from cell lines, pooled biological samples where specified (mouse studies), or biological replicates with 3 technical replicates for each biological replicate (iMono studies). In some of the figures, the average of the control values is set as one and the fold change of each individual control value is shown to reflect variance, and for the test samples, the fold change is shown for each determination, relative to the average of the control cohort. Statistical analysis was performed using GraphPad Prism (v8.4.1).

Results

IPAH and control IPAH monocyte clusters overlap

scRNAseq was applied to unstimulated PBMC of 6 IPAH and 6 control subjects (Fig. 1A). Demographic and phenotypic data of samples related to this, and subsequent experiments are shown in Tables E1 and E2 in the Online Data Supplement. PBMC were processed using a combination of 10X Genomics v2 or v3 chemical reagents (Fig. 1A). Following sequencing, data handling, and filtering out low quality cells, we obtained the transcriptome from 35,521 PBMC (IPAH = 14,273 cells, and control = 21,248 cells). Unsupervised clustering identified 26 immune cell clusters (Fig. 1B) and IPAH and control samples are overlapping (Figure E1A-B in the Online Data Supplement). Monocyte/dendritic cells (cDC), CD8+ T cells, CD4+ T cells, B cells, plasmacytoid dendritic cells (pDC) and natural killer (NK) cells were further classified using established markers for each cell type (Figure E1C). Monocytes identified using CD14, FCGR3A (CD16) and HLA-DRA, were classified into classical (CD14+/CD16−), intermediate (CD14+/CD16+), and non-classical (CD14−/CD16+) (Fig. 1D, E) and are the focus of this manuscript.

Fig. 1
figure 1

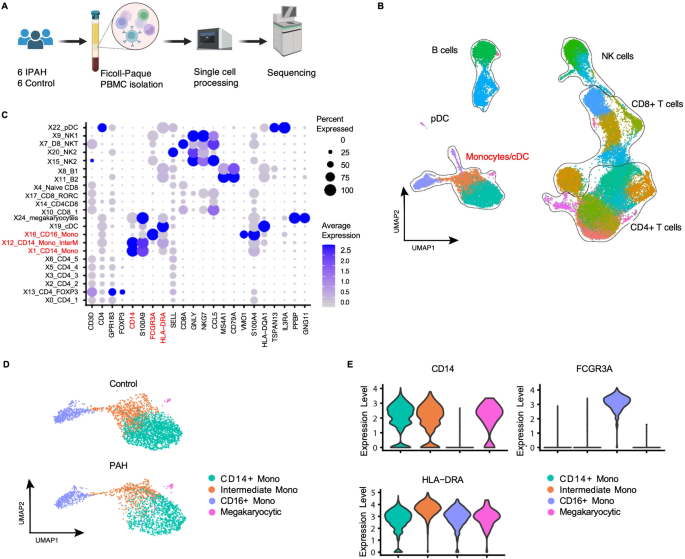

IPAH and Control monocyte clusters overlap. Peripheral blood mononuclear cells (PBMC) were isolated from peripheral blood of healthy donors (Controls) and idiopathic (I) PAH patients as described in the Methods. (A) Schematic outline of the study design. PBMC were isolated from whole blood of 6 IPAH patients and 6 Controls and processed for single cell sequencing using the 10X Genomics pipeline. Schematic constructed using Biorender.com. (B) UMAP of Control and IPAH PBMC. Major cell types - natural killer (NK) cells, CD4+ and CD8+ T cells, monocytes/ conventional dendritic cells (cDC) and B cells– are grouped with a black outline. (C) Dot plot of gene markers for PBMC cell populations (D) Monocyte subpopulation identification using CD14, CD16 (FCGR3A) and HLA-DRA gene expression. (E) Violin plot CD14, FCGR3A (CD16) and HLA-DRA expression in monocyte clusters

Full size image

IPAH monocyte differentially expressed genes (DEG) reveal a CD14low/STAT1high signature

We performed a pairwise comparison of differentially expressed (DE) genes, identifying seven DE genes between IPAH and controls for each monocyte cluster (Fig. 2A-C). HLA-B and STAT1 were upregulated across all IPAH monocyte populations, consistent with activation of the interferon (IFN) signaling pathway [29]. This aligns with our previous observation of elevated retroviral HERV-K elements in PAH monocytes that induce an IFN response related to double stranded DNA and RNA [29, 30]. Five additional genes were differentially regulated across all three monocyte subpopulations (Fig. 2D); pancreatic progenitor cell differentiation and proliferation factor (PPDPF), ferritin light chain (FTL), both associated with cell differentiation, were increased in IPAH vs. control monocytes. Conversely, genes that were downregulated included MT-RNR2 Like 8 (MTRNR2L8), a non-coding RNA implicated as an anti-apoptotic factor [31], TSC22 domain family member 3 (TSC22D3), a gene suppressed by type 1 IFN [32], and C10orf54, a monocyte activation agonist [33] that suppresses T cell activation [34] (Fig. 2E).

Fig. 2
figure 2

IPAH monocyte differentially expressed genes (DEG) reveal a CD14low/STAT1high signature. Differential expression (DE) analysis was performed on Control vs. IPAH classical, intermediate, and non-classical. (A-C) Volcano plots of DE genes, comparing fold change (FC) in genes up and down regulated in Control vs. IPAH. Orange dots represent upregulated genes in IPAH monocytes (adjusted p < 0.01 and FC ≥ 2), blue dots represent downregulated genes in IPAH monocytes (p < 0.01 and FC ≤ 0.5). (D) Venn diagram showing number of DE genes in each monocyte subpopulation, identifying common DE genes for all three subpopulations in IPAH compared to Control. (E) Heat map of individual DE genes and molecular pathway each gene is implicated in, for the DE genes common to all three monocytes subpopulations. (F) Heat map of individual DE genes and molecular pathway each gene is implicated in, for the 26 DE genes common to the classical and intermediate monocytes subpopulations. n = 6 IPAH patients or Controls. In (E and F), C: classical, I, intermediate, and NC, non-classical monocytes

Full size image

The top 20 DE genes in both classical and intermediate monocytes revealed decreased inflammatory response genes in IPAH vs. control samples that included CD14, FOS, JUNB, dual specificity phosphatase 1 (DUSP1), proteolipid protein 2 (PLP2), and annexin A10 (ANXA10), as well as interferon induced transmembrane protein 3 (IFITM3) as an anti-viral response (Fig. 2A-B and F). Other top 20 DE genes identified play a role in activation, cell arrangement, cell adhesion and survival in monocytes (Fig. 2F) [35, 36]. These data suggest two distinct IPAH monocyte phenotypes: one characterized by CD14low classical and intermediate monocytes, and the other marked by STAT1high expression across all three monocyte populations.

IPAH classical and intermediate monocyte subpopulations show a deviated differentiation trajectory

Next, to investigate the basis of these two IPAH monocyte phenotypes, we performed a pseudo-time trajectory analysis. Pseudotime color spectrum shows purple as the starting time, progressing to yellow as the endpoint (Fig. 3A). Monocyte sub-populations were identified by their transcriptome using CD14 (classical), HLA-DRA (intermediate) and non-classical (FCGR3A) markers (Fig. 3B). Control monocytes originated as CD14hi classicals (white circle “O”, Fig. 3A), and progressed along multiple trajectories toward intermediate (HLA-DR) and non-classical (CD16) phenotypes, as determined by gene expression, with six branching nodes (black circle ”B”, Fig. 3A). Two terminal ends were observed (red circle “T”, Fig. 3A), one in the intermediate cluster and the other in the non-classical cluster (Fig. 3A). Additionally, the high expression of FOS, JUNB, DUSP1, PLP2 and ANXA10 in the control classical monocyte cluster (Fig. 3C) illustrates that these activation genes are important in maintaining classical monocyte survival and maturation, consistent with previous studies [12, 37].

Fig. 3
figure 3

IPAH classical and intermediate monocyte subpopulations show a deviated trajectory. (A) Trajectory analysis (black line) for Control and IPAH monocytes. White circled ”O”” represents the starting pseudotime, red circled “T” represent terminal endpoints, and black circled “B” represent branching of trajectory. Pseudotime color spectrum shows purple as the starting time, progressing to yellow as the endpoint. (B) UMAP of monocyte clusters configured for trajectory analysis showing subpopulation characterization markers: Classical monocytes, high CD14 expression; Intermediate monocytes, high HLA-DRA expression; non-classical monocytes, low CD14 and high FCGR3A expression. (C) UMAP of gene expression profile for: FOS, JUNB, DUSP1, PLP2, ANXA1, PPDPF, STAT1 and HLA-B. n = 6/ group

Full size image

In contrast, IPAH monocytes exhibit restricted trajectories with an increase in terminal ends (red “T”, Fig. 3A). Starting from the same point as the control group (white ”O”, Fig. 3A), IPAH cells terminally differentiate into non-classical monocytes (red “T”), immature intermediate monocytes (red “T”), or classical monocytes (red “T”) in the regions of low FOS, JUNB, DUSP1, PLP2 and ANXA10 (Fig. 3C). These findings are consistent with impaired survival in IPAH classical and intermediate monocytes with decreased CD14 expression and diminished immune activation.

Elevated STAT1, PPDPF and HLA-B expression were observed in intermediate and non-classical IPAH monocytes that mature and differentiate into non-classical monocytes indicating a distinct interferon-associated phenotype in these surviving cells. To confirm this, we analyzed a panel of interferon-related genes and identified a similar expression pattern to STAT1 in this subgroup (Figure E2A-F in the Online Data Supplement). Specifically, antiviral genes IFITM2 and IFITM3 were upregulated in the IPAH trajectory subgroup that matures into non-classical monocytes as are the IFNGR3 (interferon gamma receptor 3) and IFIT2 and IFIT3 which are key components of IFN signaling.

Classical monocytes in IPAH show increased susceptibility to cell death

Based upon the trajectory analysis, we investigated the propensity of CD14high classical IPAH monocytes for cell death. IPAH patients exhibited fewer circulating total monocytes (Fig. 4A). To confirm whether this reduction was specifically due to a decrease in CD14high subpopulations, we conducted additional analysis on samples from the same individuals as Fig. 4A and included additional control and IPAH subjects, examining classical, intermediate, and non-classical monocytes (Fig. 4B). Interestingly, a fourth population characterized as CD14− and CD16− (double negative), was expanded in the IPAH monocytes (Fig. 4B). This finding was further validated in the scRNAseq dataset, which showed an increased presence of this double-negative population in the IPAH compared to the control group (Fig. 4C).

Fig. 4
figure 4

Classical IPAH monocytes are apoptotic. PBMC were isolated from whole blood of Controls and IPAH patients and assessed and/or sorted via FACS. (A) Total monocytes per 10,000 PBMC for Control or IPAH (n = 7 each). (B) Proportion of monocyte subpopulations of the total monocytes. n = 10 Controls and n = 8 IPAH. (C) UMAP of monocyte clusters showing CD14−/CD16− cells, and CD14+/CD16+ cells for Control and IPAH. (D) Schematic outlining the approach to assess the fate of IPAH classical monocytes in vitro over 24 h. Whole blood from Controls (n = 3) and IPAH (n = 3) was FACS sorted to collect CD14+/CD16− classical monocytes at T = 0. Classical monocytes were cultured for 24 h with or without stimulation by mCSF, GM-CSF or LPS, and viability was assessed via FACS with a Zombie NIR live/dead stain. (E). Dead classical monocytes following 24 h of culture with or without stimulating factors. n = 3 biological replicates. Bars represent mean ± SEM. *p < 0.05, **p < 0.01, ***p < 0.001 by Mann-Whitney non-parametric t-test (A, B & E). For panel E, n = 3 biological replicates were used. The ‘+’ symbol indicates that the minimum achievable P-value was reached using a non-parametric t-test with n = 3

Full size image

To characterize this expanded IPAH double negative monocyte population and investigate whether the reduction in IPAH monocytes is due to classical monocyte cell death we isolated classical monocytes from PBMC at baseline (T = 0) using FACS sorting (Figure E3A in the Online Data Supplement). This T = 0 population exhibited slight heterogeneity in size compared to controls (Figure E3B in the Online Data Supplement). After 24 h of culture in standard monocyte media without stimulating factors (Fig. 4D), FACS analysis revealed two distinct populations in both the IPAH and control groups (Figure E3C) in the Online Data Supplement). The smaller monocytes were CD14− and CD16− (double negative), while the larger cells were either CD14+ classical or CD14+/CD16+ intermediate monocytes (Figure E3C in the Online Data Supplement). A live/dead stain (gating shown in Figure E3D in the Online Data Supplement) confirmed that the smaller population was in the preliminary stages of cell death. After 24 h in culture, 81.2% of IPAH classical monocytes underwent spontaneous apoptosis compared to 52.7% of control classical monocytes (Fig. 4E).

Spontaneous cell death of monocytes in vitro is a well-documented phenomenon [13, 38] and is characterized by the loss of CD14 from the monocyte cell surface [39, 40]. This natural process of cell turnover can be mitigated when monocytes are stimulated with cytokines and/or toxins either in vitro or in vivo [38]. Upon stimulating the T = 0 classical monocytes with macrophage colony stimulating factor (m-CSF), granulocyte macrophage colony stimulating factor (GM-CSF) or lipopolysaccharide (LPS), there was decreased cell death in the control but not in the IPAH monocytes (Fig. 4E). The observed cell death may reflect apoptosis or alternative pathways, such as necrosis, which could be further investigated using additional markers or functional assays.

Decreased BMPR2 is linked to reduced CD14 expression

We next investigated whether the decreased CD14 mRNA expression in IPAH classical and intermediate monocytes may be linked to reduced BMPR2 mRNA expression and/or BMPR2 function observed in patients with PAH, including those without a BMPR2 genetic mutation [3, 41]. Both BMPR2 and CD14 mRNA levels were decreased in IPAH classical monocytes (Fig. 5A-B). When we reduced BMPR2 in THP1 cells (Figure E4A in the Online Data Supplement), CD14 gene expression was also decreased (Fig. 5C). This decrease in BMPR2 and CD14 in THP1 resulted in increased STAT1, IFNα, IFNβ, IFNγ (Fig. 5D-G) consistent with the scRNAseq transcriptome of the IPAH monocytes and reflecting a STAT1-IFN response.

Fig. 5
figure 5

Decreased BMPR2 is linked to decreased CD14 expression. (A) RT-qPCR of BMPR2 gene expression in classical monocytes of IPAH patient. (B) RT-qPCR of CD14 gene expression in classical monocytes of IPAH patients. (C) RT-qPCR of CD14 gene expression in THP1 monocyte cell line, where BMPR2 was decreased via treatment with siRNA targeting BMPR2 (siBMPR2) vs. non-targeting siRNA (siControl). (D-G) RT-qPCR of STAT1, IFN-α, IFN-β and IFN-γ gene expression in THP1 monocyte cell line, where BMPR2 was decreased via treatment with shRNA targeting BMPR2 (shBMPR2) vs. non-targeting shRNA (shControl) (H) Schematic outlining the breeding strategy used to generate mice with tomato (Td) fluorescent monocyte-specific tag and a conditional, monocyte specific Bmpr2 deletion (MON-Bmpr2−/−, Cx3cr1Td Bmpr2−/−), and Control mice (Control; Cx3cr1Td). Details are provided in the Methods. (I) RT-qPCR of Ly6c (mouse CD14) gene expression in circulating monocytes of the MON-Bmpr2−/− mouse, compared to Control. n = 3 groups, each consisting of pooled blood from 3 mice. (J) LY6C protein in MON-Bmpr2−/− bone marrow derived macrophages (mBMDM) assessed via western blot, with representative blot image. (K) Representative microscopic images of mBMDM stained with CD68 (green), DAPI (blue) and tamoxifen induced Td (red). MON-Bmpr2−/− mBMDM were consistently smaller compared to Control. Scale bar = 50 μm, 20 μm (zoom). (L) Representative microscopy images with small pulmonary artery (white dashed outline) zoom insert, of lung sections of mice, labeled with DAPI (blue) and showing Td (red) labelled macrophages following hypoxia. Scale bar = 100 μm, 50 μm (zoom). With quantification of macrophages per field of view (FOV). Bars represent mean ± SEM. *p < 0.05, **p < 0.01, by Mann-Whitney non-parametric t-test (A, B, J). For E, F, H, I, n = 3 biological replicates; + denotes the minimum achievable P-value for n = 3 was reached by the non-parametric t test

Full size image

Consistent with human cells, circulating monocytes from a monocyte-specific conditional Bmpr2 knockout mouse, Cx3cr1Cre inducible Td Tomato- Bmpr2−/− (MON-Bmpr2−/−) (Fig. 5H and E4B in the Online Data Supplement), showed decreased Ly6c (mouse CD14) mRNA and protein compared to Cx3cr1- inducible Td tomato without floxed Bmpr2 (control) mice (Fig. 5I, J). Using this Cre- inducible system, we isolated mouse bone marrow derived macrophages (mBMDM) from MON-Bmpr2−/−− mice (Figure E4C in the Online Data Supplement) and cultured them with Tamoxifen to induce Cre recombination of the Td Tomato fluorescence protein. Co-localization of Td Tomato (red) and CD68 (green) confirmed successful Bmpr2 knockdown (Fig. 5K). We then exposed MON-Bmpr2−/− and littermate control mice to 3 weeks of hypoxia (10% O2). As in previous studies [42], hypoxia was not sufficient to cause more severe or persistent pulmonary hypertension in MON-Bmpr2−/− male or female mice (Figure E5D-F in the Online Data Supplement), but there was increased recruitment of circulating monocytes into the pulmonary arterial perivascular space in MON-Bmpr2−/− vs. littermate control mice (Fig. 5L). A previous study using MON-Bmpr2 knockout mice induced by LysM-Cre found that the VEGF receptor inhibitor Sugen 5416, when combined with hypoxia was required to induce more severe pulmonary hypertension than in control mice [6, 9].

Functional studies related to loss of BMPR2 in human monocytes

To pursue the link between loss of BMPR2 and CD14 in human monocytes and to carry out functional studies, we used iPSC-derived monocytes (iMono) from three HPAH patients harboring a loss of function BMPR2 mutation, and from three age and gender matched healthy controls. iMono were differentiated in parallel under the same conditions and validated with the myeloid lineage markers CD64, CD45 and CD11b (Figure E5A and E5B in the Online Data Supplement).

iMono derived from BMPR2 mutant HPAH iPSC had decreased CD14 cell surface expression compared to controls (Fig. 6A), and impaired differentiation efficiency, shown by reduced cell yield (Fig. 6B), as well as increased STAT1 (Fig. 6C).

Fig. 6
figure 6

Functional studies related to loss of BMPR2 in human monocytes. Induced pluripotent stem cells (iPSC) derived from HPAH patients or Controls were differentiated into induced monocytes (iMono) using a stepwise differentiation protocol outlined in the Methods. iMono of HPAH patients and Controls were compared for (A) CD14 cell surface expression, assessed by FACS; (B) Number of iMono per mL. on day 19 of differentiation. (C)STAT1 gene expression by RT-qPCR. (D) Schematic demonstrating iEC and iMono co-culture approach for assessing adhesion. iMono adhesion to Control or HPAH iEC, per field of view. (E) Schematic demonstrating iEC and iMono co-culture approach for assessing transendothelial migration. Migrated of iMono across Control or HPAH iEC. (F) VE-cadherin and ICAM1 expression in co-culture of iMono and iEC with quantification based on mean fluorescent intensity (MFI) of 10 FOV for each replicate. Representative images of the iEC/iMono co-culture including phase, DAPI (blue) VE-cadherin (CDH5) (green) and ICAM1 (red). Red dotted outline on phase and DAPI images show adhered iMono. White dotted outline on merged images show corresponding iMono (pink). Bars represent mean ± SEM. For all experiments, n = 3 biological replications. + denotes the minimum achievable P-value for n = 3 was reached by the non-parametric t test

Full size image

Functional co-culture studies were conducted with iMono and iPSC induced-endothelial cells (iEC) differentiated from the same iPSC lines (Fig. 6D-F) and validated by acetylated LDL uptake (Figure E5C in the Online Data Supplement). HPAH vs. control iMono exhibited a marked increase in adhesion (Fig. 6D) and transendothelial migration (Fig. 6E) with both control and HPAH iEC monolayers. A smaller increase in transendothelial migration was observed with control iMono on HPAH iEC compared to control iEC, as previously shown with neutrophils [22]. Increased intercellular adhesion molecule (ICAM1) was observed in HPAH iMono compared to control iMono (Fig. 6F), consistent with studies indicating that Bmpr2 knockout monocyte lineage mice (Bmpr2KO) show elevated soluble ICAM1 in the circulation and in lung tissue following Sugen/hypoxia-induced pulmonary hypertension [6]. The observed increase in ICAM1 (Fig. 6F) may explain the increased adhesion and the reduction in VE-cadherin (Fig. 6F) may explain the increased transendothelial migration.

Discussion

Most studies investigating myeloid lineage cells in PAH focused on macrophages and their role in the obliteration of the distal pulmonary arteries [6, 43,44,45,46]. Florentin et al. showed that pathogenic macrophages in pulmonary hypertension rodent models originate from the recruitment and infiltration of circulating monocytes into the perivascular space of pulmonary arteries [9]. Recently, an increase in pro-inflammatory CCR2+ macrophages in the right ventricle in a rat PH model, with high expression of the NLRP3 inflammasome pathway was reported [47]. Treatment with a NLRP3 inhibitor (MCC950) reduced NLRP3 activation and regression of pulmonary vascular disease. Despite these findings and studies of monocytes in other vascular diseases such as atherosclerosis [48], systemic lupus erythematosus [49], peripheral artery occlusive disease and coronary artery disease [50], the characteristics of monocytes that contribute to PAH mediated pulmonary artery remodeling are relatively unknown.

We show that circulating classical IPAH monocytes exhibit an aberrant maturation trajectory, with premature termination attributed to decreased CD14 and related downstream immune response activation genes FOS, JUNB, DUPSP1 and ANXA1. These findings are consistent with cell death triggered by loss of CD14 [39, 40]. Classical IPAH monocytes that are able to mature to intermediate and non-classical monocytes show persistent expression of elevated STAT1 and interferon genes indicative of an interferonopathy [51]. Previous studies have linked PAH vascular remodeling to upregulated type I IFN signaling [52], and blood genome meta-analysis show IFN as one of the top transcriptional pathways in PAH [53]. Elevated STAT1 has been related to heightened adhesion, invasiveness, and preferential differentiation into an M1 inflammatory macrophage [54, 55]. Other genes increased in expression in PAH monocytes such as PPDPF have not previously been studied in monocytes, but could be further investigated as an inhibitor of mTOR [56] and a pro-apoptotic factor [57]. Induction of HLA-B could be evaluated in response to the high HERV-K levels in PAH monocytes as HLA-B is increased in response to viral infections [58].

In vascular diseases, IFN-mediated inflammation promotes the expression of vascular adhesion molecules such as ICAM1, inhibits vascular endothelial growth factor (VEGF) [59], and reduces VE-cadherin, increasing vascular permeability [60]. Through IFN activation, STAT1 can specifically promote ICAM1 gene expression [61]. Here we demonstrate that co-culture of HPAH iMono with either control or HPAH iEC results in increased ICAM1 mRNA in iMono, leading to an adhesive and invasive phenotype capable of penetrating the endothelial barrier and invading the perivascular space related to loss of VE-cadherin [54, 61, 62].

Our studies link the aberrant transcriptional and maturation profile of PAH monocytes to reduced BMPR2 expression seen in all forms of PAH [3]. The bone morphogenetic protein pathway drives myeloid cell maturation [63] indicating that suppression of this pathway could result in aberrant recruitment of monocytes and differentiation to macrophages with a decreased ability to resolve inflammation [44]. Elevated monocyte ICAM1 has been linked to inflammation and vascular injury resulting from myocardial infarction [64, 65], and elevated ICAM1 in the BMPR2 mutant PAH monocyte had a much greater impact on enhanced adhesion and transendothelial migration than PAH EC.

A limitation of the mouse model presented is that deletion of Bmpr2 in circulating monocytes did not result in worse hypoxia-induced PH. However, previous studies using a similar model reported that the addition of the VEGF inhibitor was necessary to show the more severe PH phenotype [6]. It is possible that infectious/inflammatory stimuli such as Schistosoma exposure that induces CCL2 mediated CCR4+ monocyte recruitment [66] or γ-herpesvirus 68 [67] may also bring out the more severe PH phenotype in mice with loss of Bmpr2 in monocytes.

Monocyte derivatives control tissue microenvironments in tumors and in chronic inflammatory diseases [68,69,70] and inhibitors of monocyte signaling have been applied in cancer [70] and in PAH where STAT1 inhibition is effective in preventing PAH [71]. Thus, emerging PAH therapies should be evaluated for their impact in reversing the aberrant monocyte phenotype.

Data availability

Data availability: The Single cell RNA seq datasets supporting the conclusions of this article are available in the in the NCBI Gene Expressing OmEtnibus (GEO) with accession number: GSE233189. [https://ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE233189].

Code availability

For the single cell RNA seq, the raw sequencing files and aggregated matrix can be downloaded at Gene Expression Omnibus under GEO number GSE233189. The analysis code can be found at https://github.com/xzhou7/scRNA_PBMC.

Abbreviations

PAH:

Pulmonary arterial hypertension

BMPR2:

Bone morphogenetic protein receptor type 2

HPAH:

Hereditary pulmonary arterial hypertension

IPAH:

Idiopathic pulmonary arterial hypertension

PH:

Pulmonary hypertension

scRNAseq:

Single cell RNA sequencing

STAT1:

Signal transducer and activator of transcription 1

FOS:

Fos proto-oncogene

JUNB:

JunB proto-oncogene

iPSC:

Induced pluripotent stem cells

iMONO:

Induced monocytes

PBMC:

Peripheral blood mononuclear cells

PAEC:

Pulmonary arterial endothelial cells

EC:

Endothelial cells

iEC:

Induced endothelial cells

PCR:

Polymerase chain reaction

LDL:

Low density lipoprotein

FBS:

Fetal bovine serum

DC:

Dendritic cells

NK:

Natural killer

DE:

Differentially expressed

IFN:

Interferon

PPDPF:

Pancreatic progenitor cell differentiation and proliferation factor

FTL:

Ferritin light chain

MTRNR2L8:

MT-RNR2 Like 8

TSC22D3:

TSC22 domain family member 3

DUSP1:

Dual specificity phosphatase 1

PLP2:

Proteolipid protein 2

ANXA10:

Annexin A10

IFITM3:

Interferon induced transmembrane protein 3

m:

CSF-macrophage colony stimulating factor

GM:

CSF-granulocyte macrophage colony stimulating factor

ICAM:

Intercellular adhesion molecule 1

VEGF:

Vascular endothelial growth factor

References

  1. Rabinovitch M. Molecular pathogenesis of pulmonary arterial hypertension. J Clin Invest. 2012;122:4306–13.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  2. Ferrian SP, Cao A, McCaffrey EF, Saito T, Greenwald NF, Nicolls MR, Bruce T, Zamanian RT, Del Rosario P, Rabinovitch M, Angelo MP. Single-Cell imaging maps inflammatory cell subsets to pulmonary arterial hypertension vasculopathy. Am J Respir Crit Care Med 2023.

  3. Atkinson C, Stewart S, Upton PD, Machado RD, Thomson JR, Trembath RC, Morrell NW. Primary pulmonary hypertension is associated with reduced pulmonary vascular expression of type {II} bone morphogenetic protein receptor. Circ. 2002;105:1672–8.

    Article  CAS  Google Scholar

  4. Sawada H, Saito T, Nickel NP, Alastalo TP, Glotzbach JP, Chan R, Haghighat L, Fuchs G, Januszyk M, Cao A, et al. Reduced BMPR2 expression induces GM-CSF translation and macrophage recruitment in humans and mice to exacerbate pulmonary hypertension. J Exp Med. 2014;211:263–80.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  5. Ferrian S, Cao A, Mccaffrey EF, Saito T, Greenwald NF, Nicolls MR, Bruce T, Zamanian RT, Rosario PD, Rabinovitch M, Angelo M. Single-Cell imaging maps inflammatory cell subsets to pulmonary arterial hypertension vasculopathy. bioRxiv 2023:2022.2012.2003.518033.

  6. West JD, Chen X, Ping L, Gladson S, Hamid R, Lloyd JE, Talati M. Adverse effects of BMPR2 suppression in macrophages in animal models of pulmonary hypertension. Pulm Circ, 2020;10(1):2045894019856483.

  7. Guignabert C, Tu L, Girerd B, Ricard N, Huertas A, Montani D, Humbert M. New molecular targets of pulmonary vascular remodeling in pulmonary arterial hypertension: importance of endothelial communication. Chest. 2015;147:529–37.

    Article  PubMed  Google Scholar

  8. Otsuki S, Saito T, Taylor S, Li D, Moonen J-R, Marciano DP, Harper RL, Cao A, Wang L, Ariza ME, Rabinovitch M. Monocyte-released HERV-K dUTPase engages TLR4 and MCAM causing endothelial mesenchymal transition. JCI Insight 2021, 6.

  9. Florentin J, Coppin E, Vasamsetti SB, Zhao J, Tai YY, Tang Y, Zhang Y, Watson A, Sembrat J, Rojas M, et al. Inflammatory macrophage expansion in pulmonary hypertension depends upon mobilization of Blood-Borne monocytes. J Immunol. 2018;200:3612–25.

    Article  CAS  PubMed  Google Scholar

  10. Asosingh K, Wanner N, Weiss K, Queisser K, Gebreab L, Kassa B, Stuehr E, Graham B, Erzurum S. Bone marrow transplantation prevents right ventricle disease in the caveolin-1-deficient mouse model of pulmonary hypertension. Blood Adv. 2017;1:526–34.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Yu YA, Malakhau Y, Yu CA, Phelan SJ, Cumming IR, Kan MJ, Mao L, Rajagopal S, Piantadosi CA, Gunn MD. Nonclassical monocytes sense hypoxia, regulate pulmonary vascular remodeling, and promote pulmonary hypertension. J Immunol 2020:ji1900239.

  12. Patel AA, Zhang Y, Fullerton JN, Boelen L, Rongvaux A, Maini AA, Bigley V, Flavell RA, Gilroy DW, Asquith B, et al. The fate and lifespan of human monocyte subsets in steady state and systemic inflammation. J Exp Med. 2017;214:1913–23.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  13. Mangan DF, Wahl SM. Differential regulation of human monocyte programmed cell death (apoptosis) by chemotactic factors and pro-inflammatory cytokines. J Immunol. 1991;147:3408–12.

    Article  CAS  PubMed  Google Scholar

  14. Wong KL, Tai JJ, Wong WC, Han H, Sem X, Yeap WH, Kourilsky P, Wong SC. Gene expression profiling reveals the defining features of the classical, intermediate, and nonclassical human monocyte subsets. Blood. 2011;118:e16–31.

    Article  CAS  PubMed  Google Scholar

  15. Tak T, Drylewicz J, Conemans L, de Boer RJ, Koenderman L, Borghans JAM, Tesselaar K. Circulatory and maturation kinetics of human monocyte subsets in vivo. Blood. 2017;130:1474–7.

    Article  CAS  PubMed  Google Scholar

  16. Tirosh I, Izar B, Prakadan SM, Wadsworth MH 2nd, Treacy D, Trombetta JJ, Rotem A, Rodman C, Lian C, Murphy G, et al. Dissecting the multicellular ecosystem of metastatic melanoma by single-cell RNA-seq. Science. 2016;352:189–96.

  17. Hafemeister C, Satija R. Normalization and variance stabilization of single-cell RNA-seq data using regularized negative binomial regression. Genome Biol. 2019;20:296.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  18. Love MI, Huber W, Anders S. Moderated Estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15:550.

    Article  PubMed  PubMed Central  Google Scholar

  19. Yu G, Wang LG, Han Y, He QY. ClusterProfiler: an R package for comparing biological themes among gene clusters. Omics. 2012;16:284–7.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  20. Trapnell C, Cacchiarelli D, Grimsby J, Pokharel P, Li S, Morse M, Lennon NJ, Livak KJ, Mikkelsen TS, Rinn JL. The dynamics and regulators of cell fate decisions are revealed by pseudotemporal ordering of single cells. Nat Biotechnol. 2014;32:381–6.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  21. Kapellos TS, Bonaguro L, Gemünd I, Reusch N, Saglam A, Hinkley ER, Schultze JL. Human monocyte subsets and phenotypes in major chronic inflammatory diseases. Front Immunol. 2019;10:2035.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  22. Gu M, Shao NY, Sa S, Li D, Termglinchan V, Ameen M, Karakikes I, Sosa G, Grubert F, Lee J, et al. Patient-Specific iPSC-Derived endothelial cells uncover pathways that protect against pulmonary hypertension in BMPR2 mutation carriers. Cell Stem Cell. 2017;20:490–e504495.

    Article  CAS  PubMed  Google Scholar

  23. Chen G, Calcaterra F, Ma Y, Ping X, Pontarini E, Yang D, Oriolo F, Yu Z, Cancellara A, Mikulak J, et al. Derived myeloid lineage induced pluripotent stem as a platform to study human C-C chemokine receptor type 5∆32 homozygotes. iScience. 2023;26:108331.

    Article  PubMed  PubMed Central  Google Scholar

  24. Emmerich K, Calcaterra F, Tang X, Chen G, Pontarini E, Ciceri R, Yang D, Joseph B, Della Bella S, Varea I, et al. Protocol for differentiation of monocytes and macrophages from human induced pluripotent stem cells. STAR Protocols. 2024;5:103217.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  25. Mattiola I, Pesant M, Tentorio PF, Molgora M, Marcenaro E, Lugli E, Locati M, Mavilio D. Priming of human resting NK cells by autologous M1 macrophages via the engagement of IL-1β, IFN-β, and IL-15 pathways. J Immunol 2015:1500325.

  26. Colombo E, Calcaterra F, Cappelletti M, Mavilio D, Della Bella S. Comparison of fibronectin and collagen in supporting the isolation and expansion of endothelial progenitor cells from human adult peripheral blood. PLoS ONE. 2013;8:e66734.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  27. de Jesus AA, Chen G, Yang D, Brdicka T, Ruth NM, Bennin D, Cebecauerova D, Malcova H, Freeman H, Martin N, et al. Constitutively active Lyn kinase causes a cutaneous small vessel vasculitis and liver fibrosis syndrome. Nat Commun. 2023;14:1502.

    Article  PubMed  PubMed Central  Google Scholar

  28. Hansmann G, de Jesus Perez VA, Alastalo TP, Alvira CM, Guignabert C, Bekker JM, Schellong S, Urashima T, Wang L, Morrell NW, Rabinovitch M. An antiproliferative BMP-2/PPARgamma/apoE axis in human and murine SMCs and its role in pulmonary hypertension. J Clin Invest. 2008;118:1846–57.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  29. Saito T, Miyagawa K, Chen S, Tamosiuniene R, Wang L, Sharpe O, Samayoa E, Harada D, Cao JRM. Upregulation of human endogenous Retrovirus-K is linked to immunity and inflammation in pulmonary arterial hypertension. Circ. 2017;136:1920–35.

    Article  CAS  Google Scholar

  30. Taylor S, Isobe S, Cao A, Contrepois K, Benayoun BA, Jiang L, Wang L, Melemenidis S, Ozen MO, Otsuki S, et al. Endogenous retroviral elements generate pathologic neutrophils in pulmonary arterial hypertension. Am J Respir Crit Care Med. 2022;206:1019–34.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  31. Azadeh M, Salehzadeh A, Ghaedi K, Talesh Sasani S. NEAT1 can be a diagnostic biomarker in the breast cancer and gastric cancer patients by targeting XIST, hsa-miR-612, and MTRNR2L8: integrated RNA targetome interaction and experimental expression analysis. Genes Environ. 2022;44:16.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  32. Dankers W, Northcott M, Bennett T, D’Cruz A, Sherlock R, Gearing LJ, Hertzog P, Russ B, Miceli I, Scheer S, et al. Type 1 interferon suppresses expression and glucocorticoid induction of glucocorticoid-induced leucine zipper (GILZ). Front Immunol. 2022;13:1034880.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  33. Rogers BM, Smith L, Dezso Z, Shi X, DiGiammarino E, Nguyen D, Sethuraman S, Zheng P, Choi D, Zhang D et al. VISTA is an activating receptor in human monocytes. J Exp Med 2021, 218.

  34. ElTanbouly MA, Zhao Y, Schaafsma E, Burns CM, Mabaera R, Cheng C, Noelle RJ. VISTA: A target to manage the innate cytokine storm. Front Immunol 2021, 11.

  35. van Furth R, Cohn ZA. The origin of mononuclear phagocytes. J Exp Med. 1968;128:415–35.

    Article  PubMed  PubMed Central  Google Scholar

  36. Yona S, Kim KW, Wolf Y, Mildner A, Varol D, Breker M, Strauss-Ayali D, Viukov S, Guilliams M, Misharin A, et al. Fate mapping reveals origins and dynamics of monocytes and tissue macrophages under homeostasis. Immunity. 2013;38:79–91.

    Article  CAS  PubMed  Google Scholar

  37. Parihar A, Eubank TD, Doseff AI. Monocytes and macrophages regulate immunity through dynamic networks of survival and cell death. J Innate Immun. 2010;2:204–15.

    Article  PubMed  PubMed Central  Google Scholar

  38. Zhao C, Tan YC, Wong WC, Sem X, Zhang H, Han H, Ong SM, Wong KL, Yeap WH, Sze SK, et al. The CD14(+/low)CD16(+) monocyte subset is more susceptible to spontaneous and oxidant-induced apoptosis than the CD14(+)CD16(–) subset. Cell Death Dis. 2010;1:e95.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  39. Heidenreich S. Monocyte CD14: a multifunctional receptor engaged in apoptosis from both sides. J Leuk Biol. 1999;65:737–43.

    Article  CAS  Google Scholar

  40. Kanatani Y, Kasukabe T, Okabe-Kado J, Yamamoto-Yamaguchi Y, Nagata N, Motoyoshi K, Honma Y. Role of CD14 expression in the Differentiation-Apoptosis switch in human monocytic leukemia cells treated with 1α,25-Dihydroxyvitamin D3 or dexamethasone in the presence of transforming growth factor Β1. Cell Growth Diff. 1999;10:705–12.

    CAS  PubMed  Google Scholar

  41. Austin ED, Loyd JE. Genetics and mediators in pulmonary arterial hypertension. Clin Chest Med. 2007;28:43–57.

    Article  PubMed  PubMed Central  Google Scholar

  42. Boucherat O, Agrawal V, Lawrie A, Bonnet S. The latest in animal models of pulmonary hypertension and right ventricular failure. Circ Res. 2022;130:1466–86.

    Article  PubMed  PubMed Central  Google Scholar

  43. Talati M, West J, Blackwell TR, Loyd JE, Meyrick B. BMPR2 mutation alters the lung macrophage endothelin-1 cascade in a mouse model and patients with heritable pulmonary artery hypertension. Am J Physiol - Lung Cell Mol Physiol. 2010;299:L363–73.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  44. Talati M, West J, Zaynagetdinov R, Hong CC, Han W, Blackwell T, Robinson L, Blackwell TS, Lane K. BMP pathway regulation of and by macrophages. PLoS ONE. 2014;9:e94119.

    Article  PubMed  PubMed Central  Google Scholar

  45. El Kasmi KC, Pugliese SC, Riddle SR, Poth JM, Anderson AL, Frid MG, Li M, Pullamsetti SS, Savai R, Nagel MA, et al. Adventitial fibroblasts induce a distinct Proinflammatory/Profibrotic macrophage phenotype in pulmonary hypertension. J Immunol. 2014;193:597–609.

    Article  PubMed  Google Scholar

  46. Li M, Riddle S, Kumar S, Poczobutt J, McKeon BA, Frid MG, Ostaff M, Reisz JA, Nemkov T, Fini MA et al. Microenvironmental regulation of macrophage transcriptomic and metabolomic profiles in pulmonary hypertension. Front Immunol 2021, 12.

  47. Al-Qazazi RA-O, Lima PA-O, Prisco SZ, Potus F, Dasgupta A, Chen KH, Tian L, Bentley RET, Mewburn J, Martin AY, et al. Macrophage-NLRP3 activation promotes right ventricle failure in pulmonary arterial hypertension. Am J Respir Crit Care Med. 2022;206:608–24.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  48. Foster GA, Gower MR, Stanhope KL, Havel PJ, Simon SI, Armstrong EJ. On-chip phenotypic analysis of inflammatory monocytes in atherogenesis and myocardial infarction. Proceed Nat Acad Sci. 2013;110:13944–9.

    Article  CAS  Google Scholar

  49. Ahamada MM, Jia Y, Wu X. Macrophage polarization and plasticity in systemic lupus erythematosus. Front Immunol. 2021;12:734008.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  50. Murray PJ. Immune regulation by monocytes. Semin Immunol. 2018;35:12–8.

    Article  CAS  PubMed  Google Scholar

  51. Bloomfield M, Zentsova I, Milota T, Sediva A, Parackova Z. Immunoprofiling of monocytes in STAT1 gain-of-function chronic mucocutaneous candidiasis. Front Immunol. 2022;13:983977.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  52. George PM, Oliver E, Dorfmuller P, Dubois OD, Reed DM, Kirkby NS, Mohamed NA, Perros F, Antigny F, Fadel E, et al. Evidence for the involvement of type I interferon in pulmonary arterial hypertension. Circ Res. 2014;114:677–88.

    Article  CAS  PubMed  Google Scholar

  53. Elinoff JM, Mazer AJ, Cai R, Lu M, Graninger G, Harper B, Ferreyra GA, Sun J, Solomon MA, Danner RL. Meta-analysis of blood genome-wide expression profiling studies in pulmonary arterial hypertension. Am J Physiol-Lung Cell Mol Physiol. 2020;318:L98–111.

    Article  CAS  PubMed  Google Scholar

  54. Sikorski K, Chmielewski S, Przybyl L, Heemann U, Wesoly J, Baumann M, Bluyssen HA. STAT1-mediated signal integration between IFNγ and LPS leads to increased EC and SMC activation and monocyte adhesion. Am J Physiol Cell Physiol. 2011;300:C1337–1344.

    Article  CAS  PubMed  Google Scholar

  55. Li H, Jiang T, Li M-Q, Zheng X-L, Zhao G-J. Transcriptional regulation of macrophages polarization by MicroRNAs. Front Immunol 2018, 9.

  56. Ma N, Wang Y-K, Xu S, Ni Q-Z, Zheng Q-W, Zhu B, Cao H-J, Jiang H, Zhang F-K, Yuan Y-M, et al. PPDPF alleviates hepatic steatosis through Inhibition of mTOR signaling. Nat Commun. 2021;12:3059.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  57. Xu J, Zong S, Sheng T, Zheng J, Wu Q, Wang Q, Tang A, Song Y, Fei Y, Li Z. Rapamycin increases leukemia cell sensitivity to chemotherapy by regulating mTORC1 pathway-mediated apoptosis and autophagy. Int J Hematol. 2024;119:541–51.

    Article  CAS  PubMed  Google Scholar

  58. Chettimada S, Lorenz DR, Misra V, Dillon ST, Reeves RK, Manickam C, Morgello S, Kirk GD, Mehta SH, Gabuzda D. Exosome markers associated with immune activation and oxidative stress in HIV patients on antiretroviral therapy. Sci Rep. 2018;8:7227.

    Article  PubMed  PubMed Central  Google Scholar

  59. Borden EC, Sen GC, Uze G, Silverman RH, Ransohoff RM, Foster GR, Stark GR. Interferons at age 50: past, current and future impact on biomedicine. Nat Rev Drug Dis. 2007;6:975–90.

    Article  CAS  Google Scholar

  60. Ng CT, Fong LY, Abdullah MNH. Interferon-gamma (IFN-γ): reviewing its mechanisms and signaling pathways on the regulation of endothelial barrier function. Cytokine. 2023;166:156208.

    Article  CAS  PubMed  Google Scholar

  61. Walter MJ, Look DC, Tidwell RM, Roswit WT, Holtzman MJ. Targeted Inhibition of interferon-gamma-dependent intercellular adhesion molecule-1 (ICAM-1) expression using dominant-negative Stat1. J Biol Chem. 1997;272:28582–9.

    Article  CAS  PubMed  Google Scholar

  62. Orekhov AN, Orekhova VA, Nikiforov NG, Myasoedova VA, Grechko AV, Romanenko EB. Zhang Di, Chistiakov DA: monocyte differentiation and macrophage polarization. Vessel Plus. 2019;3:10.

    CAS  Google Scholar

  63. Detmer K, Walker AN. Bone morphogenetic proteins act synergistically with Haematopoietic cytokines in the differentiation of Haematopoietic progenitors. Cytokine. 2002;17:36–42.

    Article  CAS  PubMed  Google Scholar

  64. Meisel Simcha R, Shapiro H, Radnay J, Neuman Y, Khaskia A-R, Gruener N, Pauzner H, David D. Increased expression of neutrophil and monocyte adhesion molecules LFA-1 and Mac-1 and their ligand ICAM-1 and VLA-4 throughout the acute phase of myocardial infarction. J Am Col Cardiol. 1998;31:120–5.

    Article  Google Scholar

  65. Dustin ML, Rothlein R, Bhan AK, Dinarello CA, Springer TA. Induction by IL 1 and interferon-gamma: tissue distribution, biochemistry, and function of a natural adherence molecule (ICAM-1). J Immunol. 1986;137:245–54.

    Article  CAS  PubMed  Google Scholar

  66. Kumar R, Kumar S, Mickael C, Fonseca Balladares D, Nolan K, Lee MH, Sanders L, Nilsson J, Molofsky AB, Tuder RM et al. Interstitial macrophage phenotypes in Schistosoma-induced pulmonary hypertension. Front Immunol 2024, 15.

  67. Spiekerkoetter E, Alvira CM, Kim Y-M, Bruneau A, Pricola KL, Wang L, Ambartsumian N, Rabinovitch M. Reactivation of γHV68 induces neointimal lesions in pulmonary arteries of S100A4/Mts1-overexpressing mice in association with degradation of Elastin. Am J Physiology-Lung Cell Mol Physiol. 2008;294:L276–89.

    Article  CAS  Google Scholar

  68. Hopewell EL, Cox C. Manufacturing dendritic cells for immunotherapy: monocyte enrichment. Mol Ther - Methods ClinDevelop. 2020;16:155–60.

    Article  CAS  Google Scholar

  69. Patysheva M, Frolova A, Larionova I, Afanas’ev S, Tarasova A, Cherdyntseva N, Kzhyshkowska J. Monocyte programming by cancer therapy. Front Immunol 2022, 13.

  70. Canè S, Ugel S, Trovato R, Marigo I, De Sanctis F, Sartoris S, Bronte V. The endless Saga of monocyte diversity. Front Immunol 2019, 10.

  71. Yerabolu D, Weiss A, Kojonazarov B, Boehm M, Schlueter BC, Ruppert C, Günther A, Jonigk D, Grimminger F, Ghofrani HA, et al. Targeting Jak-Stat signaling in experimental pulmonary hypertension. Am J Respir Cell Mol Biol. 2021;64:100–14.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

We thank Dr. Dan Bernstein for the use of his equipment in the Murine Cardiovascular Phenotyping Core Lab. We greatly appreciate Dr. Michal B. Roof for her input, editorial, and technical assistance, and Ms. Michelle Ameri for her administrative help. This work used the Genome Sequencing Service Center of the Stanford Center for Genomics and Personalized Medicine Sequencing Center. Mouse histology sectioning was performed by the Stanford Department of Comparative Medicine Animal Histology Services (AHS). The Pulmonary Hypertension Breakthrough Initiative (PHBI), funded by NIH/NHLBI R24 HL123767 and the Cardiovascular Medical Research and Education Fund (CMREF) UL1RR024986, provided PAEC from PAH patients and unused donor lungs. iPSC used in the iMono/ iMac experiments were derived by the Stanford CVI Biobank from de-identified skin fibroblasts provided by Dr. Eric Austin from Vanderbilt University, and by the PHBI Network investigators at Baylor College of Medicine, Vanderbilt University, and Allegheny hospital (Pittsburgh, PA).

Funding

This work was supported by NIH-NHLBI grants P01 HL108797 (M.R., R.T.Z.), R01 HL122887 (M.R.), R01 HL074186 (M.R.) and R01 HL138473 (M.R.). X.Z. was supported by the Stanford Aging and Ethnogeriatrics (SAGE) Research Center under NIH/NIA grant P30 AG059307 and by NIH-NIA grant U54 AG089334. D.P.M was supported by NIH-NHLBI grant R00 HL145097.G.C. and M.B. were supported by the NIH-NHLBI Intramural Research Program. S.I. was supported by AHA award 20POST35080009; S.O. was supported by a grant from Mie University Graduate School of Medicine. M.P.S is supported by NIH grants S10 OD025212 and P30 DK116074. M.R. is also supported by the Dunlevie Chair in Pediatric Cardiology at Stanford University.

Author information

Author notes

  1. Rebecca L. Harper and Xin Zhou are co-first authors.

Authors and Affiliations

  1. Department of Pediatrics, Stanford University School of Medicine, CCSR-1215A, 269 Campus Drive, Stanford, CA, 94305-5162, USA

    Rebecca L. Harper, Aiqin Cao, Lingli Wang, Mir S. Adil, Shanthi Deivanayagam, Marcy Martin, Sarasa Isobe, Shoichiro Otsuki & Marlene Rabinovitch

  2. Basic Science and Engineering (BASE) Initiative, Betty Irene Moore Children’s Heart Center, Lucile Packard Children’s Hospital, Stanford, CA, 94305, USA

    Rebecca L. Harper, Aiqin Cao, Lingli Wang, Mir S. Adil, Sarasa Isobe & Marlene Rabinovitch

  3. Stanford Cardiovascular Institute, Stanford University School of Medicine, Stanford, CA, 94305, USA

    Rebecca L. Harper, David P. Marciano, Aiqin Cao, Lingli Wang, Mir S. Adil, Marcy Martin, Sarasa Isobe, Shoichiro Otsuki, Michael P. Snyder & Marlene Rabinovitch

  4. Department of Genetics, Stanford University School of Medicine, Stanford, CA, 94305, USA

    Xin Zhou, David P. Marciano, Wenyu Zhou, Peter Maguire & Michael P. Snyder

  5. National Heart, Lung & Blood Institute, National Institutes of Health, Bethesda, MD, 20800, USA

    Guibin Chen, Quan Yu, Dan Yang & Manfred Boehm

  6. Department of Radiation Oncology, Stanford University School of Medicine, Stanford, CA, 94305, USA

    Vignesh Viswanathan

  7. Department of Medicine, Stanford University School of Medicine, Stanford, CA, 94305, USA

    Jordan Burgess, Audrey Inglis, Devon Kelley, Patricia A. del Rosario, Francois Haddad & Roham T. Zamanian

  8. Vera Moulton Wall Center for Pulmonary Vascular Diseases, Stanford University School of Medicine, Stanford, CA, 94305, USA

    Patricia A. del Rosario, Andrew Hsi, Francois Haddad, Roham T. Zamanian & Marlene Rabinovitch

Authors
  1. Rebecca L. Harper
    View author publications

    You can also search for this author inPubMed Google Scholar

  2. Xin Zhou
    View author publications

    You can also search for this author inPubMed Google Scholar

  3. David P. Marciano
    View author publications

    You can also search for this author inPubMed Google Scholar

  4. Aiqin Cao
    View author publications

    You can also search for this author inPubMed Google Scholar

  5. Lingli Wang
    View author publications

    You can also search for this author inPubMed Google Scholar

  6. Guibin Chen
    View author publications

    You can also search for this author inPubMed Google Scholar

  7. Mir S. Adil
    View author publications

    You can also search for this author inPubMed Google Scholar

  8. Wenyu Zhou
    View author publications

    You can also search for this author inPubMed Google Scholar

  9. Peter Maguire
    View author publications

    You can also search for this author inPubMed Google Scholar

  10. Shanthi Deivanayagam
    View author publications

    You can also search for this author inPubMed Google Scholar

  11. Quan Yu
    View author publications

    You can also search for this author inPubMed Google Scholar

  12. Vignesh Viswanathan
    View author publications

    You can also search for this author inPubMed Google Scholar

  13. Dan Yang
    View author publications

    You can also search for this author inPubMed Google Scholar

  14. Marcy Martin
    View author publications

    You can also search for this author inPubMed Google Scholar

  15. Sarasa Isobe
    View author publications

    You can also search for this author inPubMed Google Scholar

  16. Shoichiro Otsuki
    View author publications

    You can also search for this author inPubMed Google Scholar

  17. Jordan Burgess
    View author publications

    You can also search for this author inPubMed Google Scholar

  18. Audrey Inglis
    View author publications

    You can also search for this author inPubMed Google Scholar

  19. Devon Kelley
    View author publications

    You can also search for this author inPubMed Google Scholar

  20. Patricia A. del Rosario
    View author publications

    You can also search for this author inPubMed Google Scholar

  21. Andrew Hsi
    View author publications

    You can also search for this author inPubMed Google Scholar

  22. Francois Haddad
    View author publications

    You can also search for this author inPubMed Google Scholar

  23. Roham T. Zamanian
    View author publications

    You can also search for this author inPubMed Google Scholar

  24. Manfred Boehm
    View author publications

    You can also search for this author inPubMed Google Scholar

  25. Michael P. Snyder
    View author publications

    You can also search for this author inPubMed Google Scholar

  26. Marlene Rabinovitch
    View author publications

    You can also search for this author inPubMed Google Scholar

Contributions

R.L.H. and M.R. conceptualized the project. R.L.H. performed all experiments, differentiated iEC and iMacs, analyzed data, edited the Figures, and wrote the manuscript. X.Z. performed single cell data analysis. D.P.M. assisted in cell culture, animal handling, conceptualization of project and data interpretation. A.C. assisted with animal handling including mouse blood draws, tamoxifen treatment, RT-qPCR and conducted statistical analyses. G.C. performed iPSC quality control, iMono and iMac differentiation and Q.Y. assisted with their characterization via FACS and microscopy imaging. M.S.A. conducted THP1 sh-knockdown studies and qPCR. L.W. established the mouse model. L.W. and S.O. assessed mouse cardiac hemodynamics. W.Z. and P.M. conducted single cell data processing and QC. S.D. performed ELISA experiments. V.V. assisted in animal handling, imaging of tissue sections and analysis of tissue sections. D.Y. assisted with experimental design and analysis of adherence and transendothelial migration assays. M.M. and S.I. assisted with animal handling and staining of tissues. J.B., A.I., D.K., P.A.delR., A.H., F.H. and R.T.Z. provided de-identified samples and associated information of PAH patients and controls. A.H. provided PAH patient information from the Vera Moulton Wall Center PH Database. M.P.S. and M.B. assisted in the supervision of the project. M.R. supervised the project and helped prepare the manuscript. All authors discussed the results and reviewed the manuscript.

Corresponding author

Correspondence to Marlene Rabinovitch.

Ethics declarations

Ethics approval and consent to participate

All human samples used were coded and all patients and controls signed an informed consent under protocols approved by the Institutional Review Board on Human Subjects in Medical Research at Stanford University. The Animal Care Committee at Stanford University approved all the experimental protocols used in this study in accordance with the guidelines of the American Physiological Society.

Consent for publication

Not applicable.

Competing interests

M.P.S. is a co-founder and scientific advisor for Crosshair Therapeutics, Exposomics, Filtricine, Fodsel, Iollo, InVu Health, January AI, Marble Therapeutics, Mirvie, Next Thought AI, Orange Street Ventures, Personalis, Protos Biologics, Qbio, RTHM, SensOmics. M.P.S. serves as a scientific advisor for Abbratech, Applied Cognition, Enovone, Jupiter Therapeutics, M3 Helium, Mitrix, Neuvivo, Onza, Sigil Biosciences, TranscribeGlass, WndrHLTH, Yuvan Research. M.P.S. is a co-founder of NiMo Therapeutics. M.P.S. is an investor and scientific advisor of R42 and Swaza. M.P.S. is an investor in Repair Biotechnologies. The other authors declare no competing interest.

Additional information

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Supplementary Material 1

Supplementary Material 2

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Harper, R.L., Zhou, X., Marciano, D.P. et al. Altered maturation and activation state of circulating monocytes is associated with their enhanced recruitment in pulmonary arterial hypertension. Respir Res 26, 148 (2025). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12931-025-03182-0

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12931-025-03182-0

Keywords

Respiratory Research

ISSN: 1465-993X

Contact us
