Fig. 2
From: Characteristics of upper and lower respiratory tract microbiota after lung transplantation

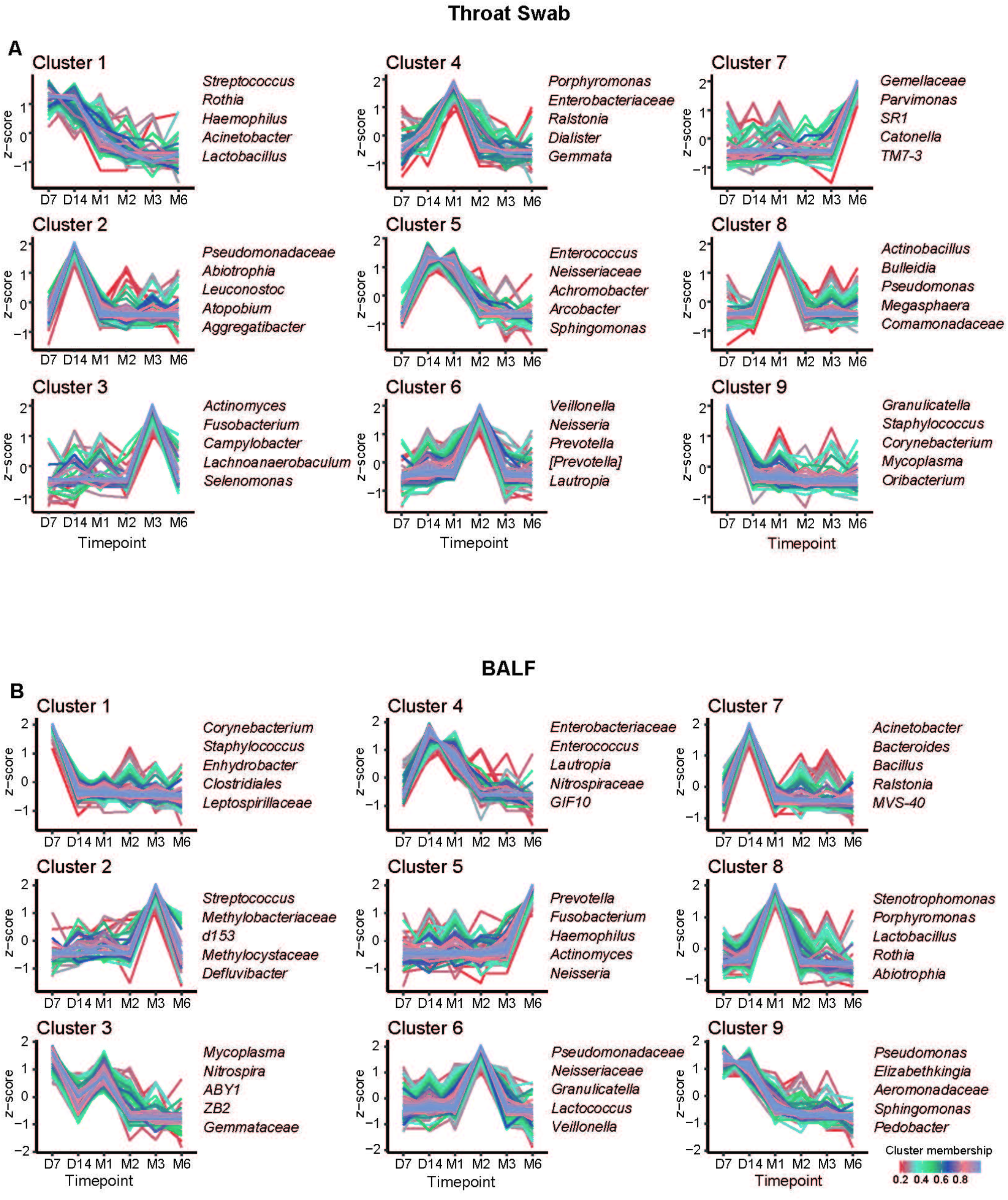

Differential and clustering analysis of respiratory microbiota over time. Line graphs represent the trends of z-scores of ASVs relative abundance over time. The 5 most abundant ASVs are listed on the right side of each graph. Colors indicate membership values, representing the degree to which data points belong to clusters. D7: 7 days post-operative; D14: 14 days post-operative; M1: 1 month post-operative; M2: 2 months post-operative; M3: 3 months post-operative; M6: 6 months post-operative. (A) Differential and cluster analysis of upper respiratory tract microbiota changes over time represented by throat swab. (B) Differential and cluster analysis of lower respiratory tract microbiota changes over time represented by BALF
